3000HP Model Bow Tug - 6960

Description

Used Single Screw Model Bow Tug For Sale. In current operation. (1) almond johnson Single Drum Tow Winch w/ 125,000 Lbs. line pull at stall and 2,000 FT of 2" cable 72,000 Bollard pull. Has fwd capstan Recent upgrades: 2009 new clutches 2010 gearbox overhauled new a.b.s loadline, renew tail shaft and stern bearing 2012 overhaul starboard gen set and new m.e. turbo. The vessel is also fitted with a sound powered internal phone system, main engine tachometer, RAI, new fire detection system, main engine and steering controls located to both the port and starboard side of the wheelhouse, an engine room alarm system located on the aft bulkhead including a bilge alarm navigation and towing lights, Kalberg shipfts horn, whistle and bell,. ABS current until 2016.

Videos

REGISTRATION
YEAR BUILT:	1965
BUILDER:	Pacific Coast Engineering
FLAG:	U.S
CLASSIFICATION:	None required
CONSTRUCTION:	Steel
GROSS / NET TONS:	190 / 88
CERTIFIED:	Yes CERT. EXPIRES:
# OF PASSENGERS:	0
LOADLINE:	ABS
LAST SURVEY

DIMENSIONS
LENGTH:	121 FT. / 36.91 MT.
BEAM:	31.1 FT. / 10.2 MT.
DRAFT:	9.0 FT. / 2.75 MT.
REG. LENGTH:	115.2 FT. / 37.79 MT.
EYE LEVEL:	0.0 FT.

CAPACITIES
	Gal.	M Tons	Barrels
FUEL:	60,000	240.0	1429.0
POTABLE WATER:	18,000	72.0	429.0
BALLAST:	4,000	16.0	95.0
DECK CAPACITY:

PERFORMANCE
SPEED:	13 KTS
CONSUMPTION:	GPH: 60.0 Tons Per Day: 4.61

ACCOMMODATIONS
BERTHS:	8
STATEROOMS:	5

LOCATION
LOCATION:	EAST COAST-US

MACHINERY
MAIN ENGINES:	1 EMD-12-645-E2 HRS.
HORSEPOWER:	3000
REDUCTION GEAR:	FALK RM-1443 RATIO:4.5:1

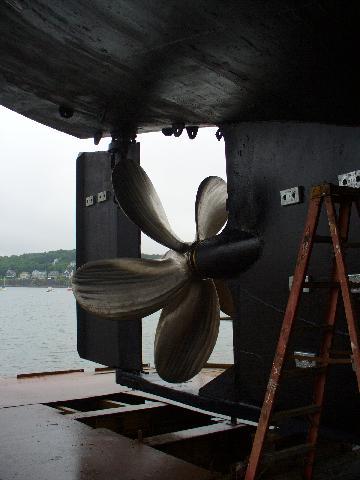

PROP:	122x98"
NOZZLE:	NO
GENERATORS:	CAT 3306 - KW:60
BOW THRUSTER:	NO
BOLLARD PULL:	72000lbs

DECK EQUIPMENT
CRANES:
STERN ROLLER:	YES

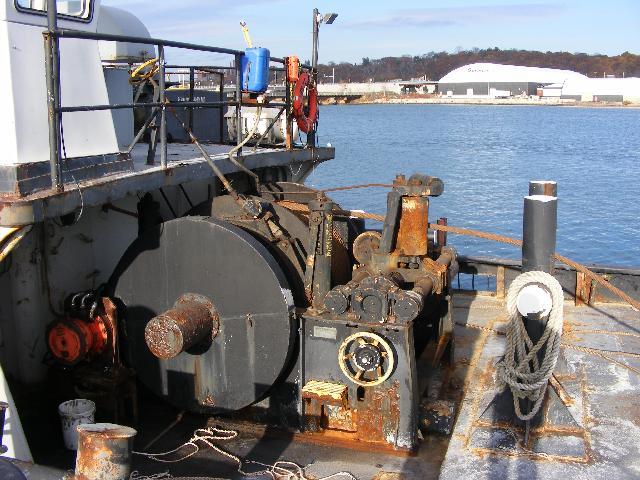

WINCH TYPE:	ALMOND JOHNSON
LINE PULL:	125K lbs
FLEET DECK :
PUSH KNEES:	NO
PUSH WINCH MAKE :	Fwd capstan

ELECTRONICS
AUTO PILOT:	Sperry 8T
DEPTH FINDER:	Furuno LS-6100 sounder
PLOTTER:	Furuno LS-6100 sounder
EPIRB:	YES
GPS:	Furuno GP-37 &GP-37 DGPS
GYRO:	No
RADIO VHF:	YES
RADIO SSB:	YES
RADAR:	(2) Furuno Radar

OTHER EQUIPMENT
