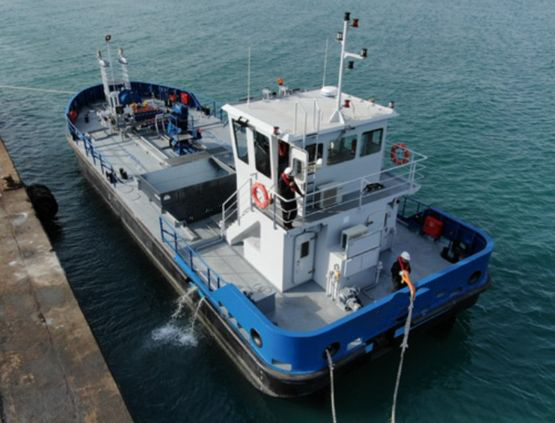

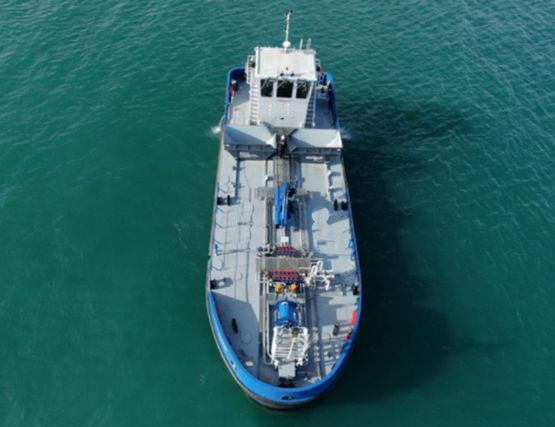

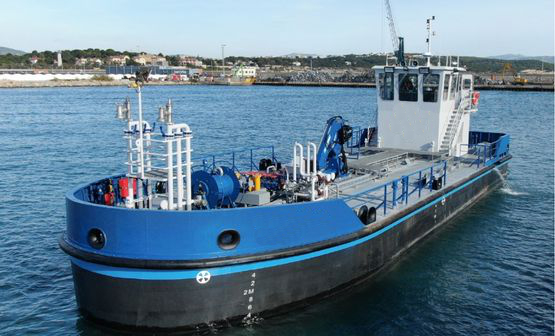

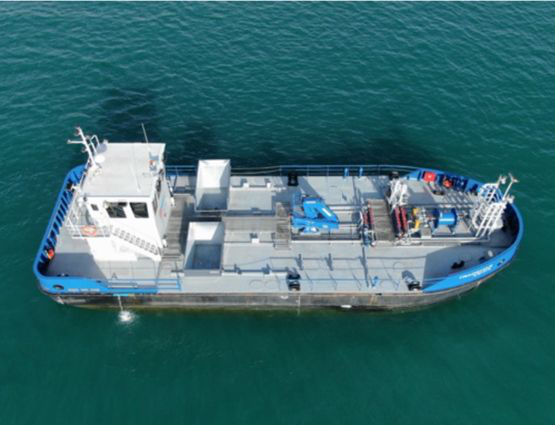

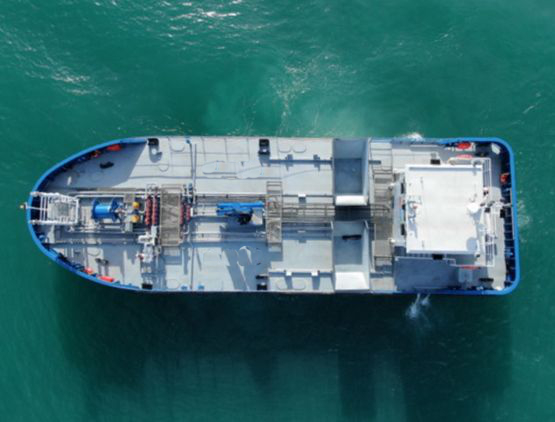

NEW BUILD TO ORDER 85ft Oil Tanker - 14964

Description

Marpol I, IV, VI capacity: 220 m3 (95%)

Marpol V Capacity: 30m3

Loading/unloading ratio: 40m3/h

CARGO SYSTEM

Cargo pump Maker: Trief

Cargo pump model: Hydraulic driven BAL 32 R B 600 H

Capacity: 40 m3/h

Pressure: 5 bar

Viscosity: 50 Cst

Density: 1 kg/dm3

PROPULSION SYSTEM

M.W maker: Doosan Intracore Co.

Model: L126 TIH with electronic control Aventics Marex ECS 500 and InteliDrive DCU controller

Total Power: 2x260 hp at 2,000 r.p.m

Tail shaft: Stainless steel AISI 316L

Tail shaft bearings: Thordon SXL

Propeller: 2 units, 4 fixed blades diameter 1,070 mm.

STEERING SYSTEM

Rudder blade: 2 x high performance rudder blades semi-balanced

Rudder area: 2 x 0,9 m2

Rudder shaft: Stainless steel AISI 316L

Rudder shaft bearings: Thordon Zorec

BALLAST SYSTEM

Ballast pump Maker: Varisco

Model: Self priming centrifugal pump JS2-120-K10

Capacity: 44 m3/h

Ballast manifold: 5 x globe valve DN65

Ballast tanks: 6 units

AUXILIARY EQUIPMENT

Electrical anchor winch maker: Galmac

Winch model: MOH-14-1-E

Anchor chain: 14 mm Q2

Anchor: 240 kg.

ELECTRICAL SYSTEM

Gen-set: 2 units

Engine Maker: Doosan Infracore Co.

Model: AD136TF

Power: 2 x 145 Hp at 1,500 rpm

Generator maker: Mecc Alte

Model: ECP34-1L4

Power: 2x135 Kva, 50 Hz, 400V

3-Ph Power transformer: 400V-230V, 25 Kva IP23

Battery set: 12 x 12 V

Electrical installation: ATEX

COMMUNICATION & NAVIGATION SYSTEM

Magnetic compass: Ritchie 80

AIS: EM-Track B100

Chart Plotter with echo-sounder: Samyung NF100

VHF GMDSS: SPO 507 M

VHF portable: SPO 36 M

CRANE & DERRICKS

Deck crane: Cytecma

Capacity: 2.5 tonnes at 8m

ACCOMMODATION

The vessel is equipped with one cabin for 2 pax including 2 beds with complete bathroom, sofa and table.

Workshop facilities including working bench, 380 and 220V electrical connection.

TANK CAPACITIES

Cargo: 220 m3 (95%)

Diesel oil: 11 m3

Ballast water: 90 m3

Fresh water: 2,17 m3

Bilge water: 1,55 m3

Grey/Black water: 1,55 m3

Videos

REGISTRATION
YEAR BUILT:	Built to Order
BUILDER:	TBD
FLAG:	TBD
CLASSIFICATION:	TBD
CONSTRUCTION:	Steel
GROSS / NET TONS:	TBD / TBD
CERTIFIED:	CERT. EXPIRES:
# OF PASSENGERS:
LOADLINE:	None Required
LAST SURVEY

DIMENSIONS
LENGTH:	82.51 FT. / 25.15 MT.
BEAM:	26.25 FT. / 8.0 MT.
DRAFT:	7.97 FT. / 2.43 MT.
CLEAR DECK:	TBD - SQ METER
REG. LENGTH:	0.0 FT. / 0.0 MT.

CAPACITIES
	Gal.	M Tons	Barrels
FUEL:	2,905	10.0	69.0
POTABLE WATER:	573	2.0	14.0
BALLAST:	23,775	85.0	566.0
DECK CAPACITY:

PERFORMANCE
SPEED:	6 KTS
CONSUMPTION:	GPH: 0.0 Tons Per Day: 0.0

ACCOMMODATIONS
BERTHS:	YES
STATEROOMS:	YES

LOCATION
LOCATION:	Spain

MACHINERY
MAIN ENGINES:	2 AD136TF Doosan Infracore Co HRS. N/A
HORSEPOWER:	260
REDUCTION GEAR:	TBD RATIO:TBD
PROP:	1070MM
NOZZLE:	TBD
GENERATORS:	Mecc Alte ECP34-1L4 - KW:
BOW THRUSTER:	TBD
BOLLARD PULL:	N/A

DECK EQUIPMENT
CRANES:	YES
STERN ROLLER:	NO
WINCH TYPE:	TBD
LINE PULL:	N/A

ELECTRONICS
AUTO PILOT:	TBD
DEPTH FINDER:	TBD
PLOTTER:	Samyung NF100
EPIRB:	YES
GPS:	TBD
GYRO:	Ritchie 80
RADIO VHF:	SPO 507 M /SPO 36 M
RADIO SSB:	TBD
RADAR:	TBD
